BDS Lift Kit 2.5in Diesel

This new system is perfect for the F250 owner looking for a 2.5in lifted and leveled stance with the performance of dual rate coil springs. This kit is complete with new front dual rate coils, brake line relocation brackets, turnbuckle style adjustable front track bar, ball joint cams, coil shims, rear replacement block kit and your choice of shocks. The key to this kit is the coil seat correction shims and upper ball joint cams. The coil seat shims reposition the lower seat to be square with the frame mount to minimize coil bow which is typical of leveled F250/F350 trucks when the radius arms arenftt relocated or replaced. The ball joint cams return the caster to factory settings to provide stock-like handling and drivability. This is a great kit for those who want more than just a spacer but arenftt quite ready to jump into the full replacement radius arm system. The rear block box kit replaces the factory 2in block on F250 models for a level stance. On F350 models with factory 3-7/8in blocks, the rear box kit can be omitted and achieve the same stance.

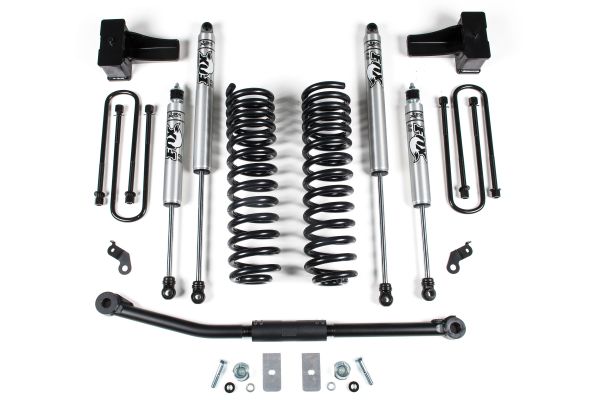

Kit Components

BDS013254: 2005-15 F250 2.5in Front Box Kit X1

BDS013408: 2011-15 F250 4in Rear Block Kit X1

BDS033251: 2005-19 Super Duty 2.5in Front Coils-dsl X1

BDS85713: NX2 Shock Absorber X2

BDS85760: BDS NX2 Shock Absorber X2
