BDS Lift Kit 3in Kit w/Overloads w/FOX Shocks

At the heart of this new system is a pair of heavy duty tubular upper control arms (UCAs) designed for improved strength and suspension travel. These new control arms are built from thick wall 1.5in DOM tubing, and use an indexed ball joint cup to reposition the upper ball joints to allow more droop travel. These arms come fully assembled right out of the box with high quality greaseable ball joints and rubber bushings for long life, quiet operation and superior corrosion resistance over uniballs and heims. Along with the control arms, a pair of indexed cast steel torsion bar keys are supplied up front to lift vehicle. A small differential relocation kit is supplied to correct CV axle operating angles without effecting ground clearance. To eliminate sway bar interference, a pair of sway bar relocation brackets is used which maintains proper operating angle. In the rear a 2in block and u-bolt kit is used to create a level to slightly tail high stance when unloaded. Rounding out these kits are a pair of specially tuned FOX 2.0 performance series IFP shocks ready to soak up the terrrain. Take your HD to the next level with BDS Suspension.

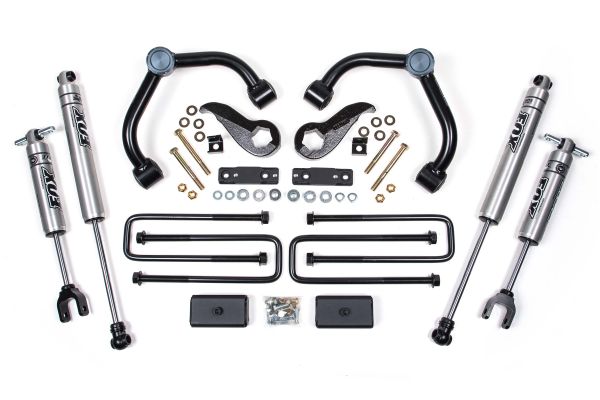

Kit Components

BDS011310: UCA Box Kit X1

BDS011217: 2in Rear Block X1

FOX98224758: FOX 2.0 Shock Absorber X2

FOX98524240: FOX 2.0 Shock Absorber X2
