BDS Lift Kit 4in High-Clearance Crossmembers

This 4in lift kit will clear up to 35in tires and is based around two one-piece, 1/4in laser cut high-clearance crossmembers and replacement steering knuckles. The high-clearance crossmembers increase ground clearance for off road performance. The replacement steering knuckles reduce installation time as well as maintain proper steering angles and ball joint angles. A differential skid plate is included for off road protection. The system also includes bump stop drops, anti-sway bar links, 3 point differential drop system, strut relocation brackets, and front stainless steel brake lines. The rear is lifted via BDS 2in coil spacers to level most trucks. The rear for this Dodge Ram lift kit is completed with a track bar bracket, upper link relocation brackets and sway bar links. A 3in rear coil spring option is available depending on your desired stance.

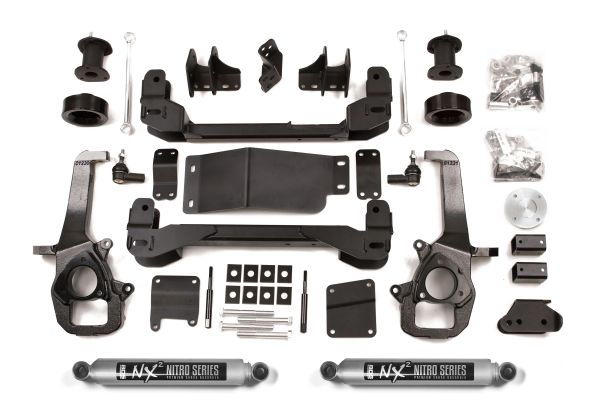

Kit Components

BDS022209: 09-12 Dodge 1500 2in Rear Spacer Kit X1

BDS022402: 2012 Dodge 1500 4in Frnt Box Kit 3of4 X1

BDS022625: 2012 Dodge 1500 6 in Frnt Box Kit 4 of 4 X1

BDS022630: 2013 Dodge 1500 4WD Front Box Kit (1 of 4) X1

BDS022631: 2013 Dodge 4WD Front Box Kit (2 of 4) X1

BDS85758: NX2 Shock Absorber X2
