BDS Lift Kit 4in Gas w/FOX Shocks

Relocates the radius arms with a unique bracket that eases inatallation. The new relocation bracket ties into the factory radius arm frame mount and the side of the frame rail. The new mount is fastended at the frame with machined sleeves and threaded inserts. Minor welding is required. Kit includes track bar relocation, dropped pitman arm and brake line relocation hardware to position all the steering and brake components to work properly with the new height. Rear of the vehicle is lifted with heavy duty steel fabricated coil spacers that bolt directly on the factory coil spring axle mount. An axle mounted track bar relocation bracket repositions the rear track bar and centers the axle. Extended sway bar links keep the rear sway bar at the optimum operating angle.

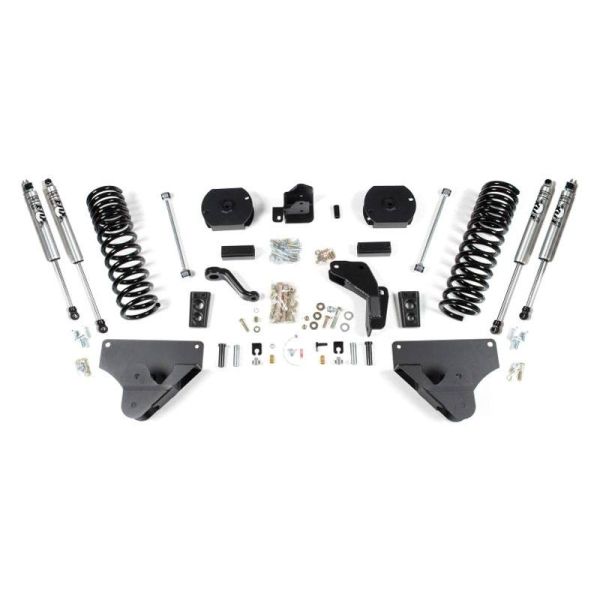

Kit Components

BDS012258: Rear Coil Kit X1

BDS012401: 4in Box Kit X1

BDS032302: Front Coil Springs X1

FOX98224700: FOX 2.0 Shock Absorber X2

FOX98224753: FOX 2.0 Shock Absorber X2
