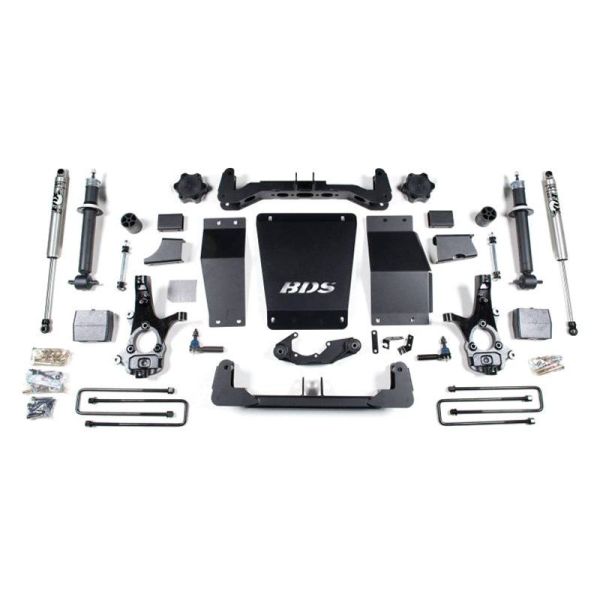

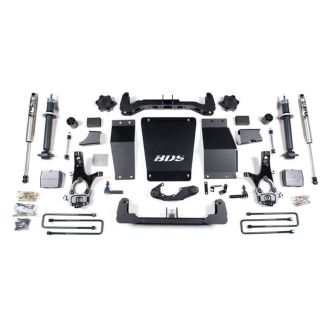

BDS Lift Kit 6in Block Kit IFS Suspension System

This new suspension system utilizes the tried and true high-clearance IFS suspension design that has made BDS the preferred suspension lift for the 1/2 ton GM trucks. At the heart of the new lift are the ductile cast iron replacement steering knuckles and high-clearance, full width lower control arm crossmembers. These components establish a suspension geometry that not only performs well on and off road but is compliant with the factory traction control systems. The suspension also works seamlessly with the newly redesigned electric power steering system that is standard on the new 2014 models. The front differential is relocated for proper angles at the CV axles and allowing for the use of the stock front driveshaft. A 3-piece differential drop system keeps the differential secure and the 3-piece front skid plate system keeps the underside protected on those offroad excursions. Full replacement front struts provide the lift in the front. Replacement front tie rod ends and sway bar links round out the front system. In the back, a block and u-bolt setup levels the rear with the front.

Kit Components

BDS011505: 5in Rear Block Kit X1

BDS021661: Knuckle Box Kit X1

BDS021662: Front Box Kit 1 of 2 X1

BDS021663: Front Box Kit 2 of 2 X1

BDS85759: NX2 Shock Absorber X2

BDS98166: NX2 Front Strut (Pair) X1
