BDS Lift Kit 6in Radius Arm Kit - Diesel

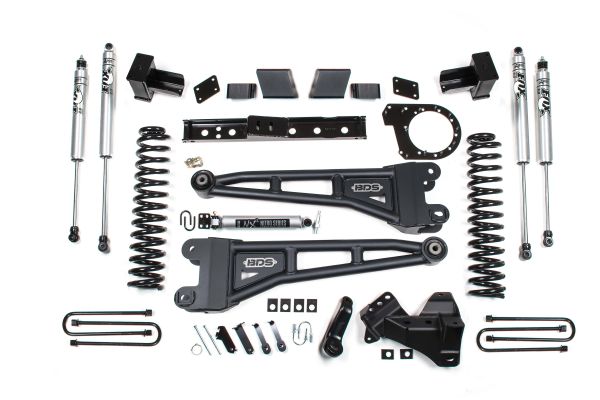

This kit includes two 6in  Pro-Ride Coil Springs. This full replacement four link system is centered around 4 massive control arms featuring greasable ends.  The 4-link system reduces caster change through wheel travel creating a more contolled feel both on and off road.  The kit also comes with a new steering stabilizer, anti-sway bar drop brackets, a dropped pitman arm for steering angle correction, a track bar relocation bracket to properly center your axle and bump stop extension.

The rear is lifted via a 5in block kit or full replacment leaf spring options.

• Tire & Wheel Combinations
• 37in x 13.50in w/17 x 9 and 4in back spacing
• Est. Installation: 8 hours
• Difficulty Level (easy 1 - 5 complicated): 3

• 1.  Removal of the factory block is required.
• 2.  Installation of the rear block kit will result in a inpre-runnerin look with the rear of the vehicle 2in lower than the front.  To get a level stance you must upgrade to the rear leaf spring option.
• 3.  These trucks were manufactured with and without top mounted overload springs on the rear leaf springs.  A top mounted overload is an extra leaf separate from the pack that set above the main leaf.  You will need to identify which you have before ordering.
• 4.  If your vehicle is equipped with a carrier bearing, you will need to order BDS123402 in the options section.
• 5.  Although extremely rare, front driveline vibration may occur.
• 6.  Front exhaust modification may be required to clear the front driveshaft on gas models.
• 7. U-bolts will not fit dually models.
• 8. Dropped pitman arm will not fit 10 lug wide track F350 models.
