BDS Lift Kit 6in w/Fox 2.5 Coilovers (2016 Toyota Tacoma)

BDS Suspension adds to their lineup of high quality suspension lift kits with new 6in DSC coilover systems for the 2005 and up Toyota Tacoma. These systems are designed to vastly improve the truckfts offroad performance while maintaining a smooth, comfortable ride on pavement. These new coilover systems build on the proven high clearance design of the 6in BDS suspension systems, now offered with FOX 2.5 coilovers with DSC adjustment built in. These new 6in systems integrate flawlessly with the new electronic stability control (ESC) systems and allow enough clearance for 35in tires to be installed. DSC is available both as complete 6in lift system as well as a coilover upgrade kit for trucks currently outfitted with the BDS 6in IFS lift kits. The FOX 2.5 coilovers w/ remote DSC reservoir are pretuned for exceptional performance right out of the box preset for 6in of lift for easy installation. They feature a smooth bore and honed seamless alloy body, 7/8in hardened steel carbon shaft, Eibach coil springs, black anodized machined 6061-T6 billet aluminum mounts and FOXfts DSC (dual speed compression) adjustment technology built into the remote reservoir. DSC is the next big thing in suspension performance allowing for easy adjustment of your vehiclefts suspension compression dampening so you can dial in the ideal ride performance to soak up the bumps, both large and small. The DSC has 12 adjustment points for the high speed compression as well as 10 adjustment points for the low speed compression allowing you to make large or small changes to further improve your performance. Adjustments can be made by simply twisting the inbluein high speed and ingoldin low speed compression knobs located on the end of the remote reservoir of the FOX 2.5 coilovers. No tools or shop adjustments needed, allowing you to tune the suspension out on the trail. Along with the FOX 2.5 DSC coilovers, the complete systems include a pair of high strength, one-piece crossmember built from 1/4in steel are supplied along with the heavy duty full width skid plate and support brace to create an extremely rigid subframe to position the suspension and drivetrain components. CNC-machined ductile iron steering knuckles dwarf the factory units and reposition the steering mount to compensate for the lift. Frame mounted reservoir brackets are supplied along with bump stop extensions, sway bar relocation brackets, brake line relocation, differential brackets and cam lock plates. In the rear, 4in rear lift blocks and longer u-bolts are used to achieve a level to slightly tail high stance. Brake line brackets and precision tuned FOX 2.0 IFP rear shocks round out the system and giving clearance for 35in tires to be installed. Get more out of your 2005-2017 Toyota Tacoma from BDS Suspension and FOX with new 6in DSC Coilover Systems.

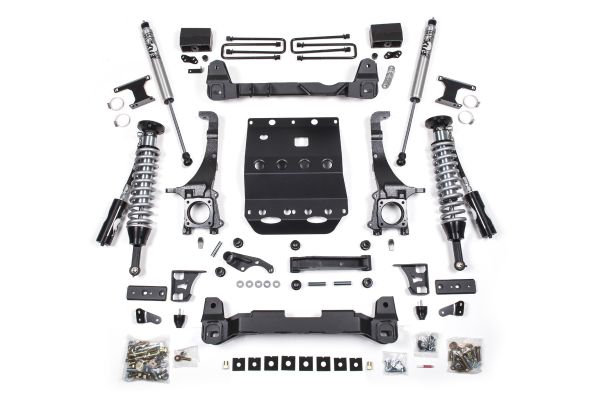

Kit Components

BDS018408: Rear Block X1

BDS028600: Front Box Kit 1 of 4 X1

BDS028611: Front Box Kit 2 of 4 X1

BDS028612: Front Box Kit 3 of 4 X1

FOX88306048: FOX 2.5 Factory Coilovers X1

FOX98224953: FOX 2.0 Shock Absorber X2
