Trail Gear Rod End
Bore = .875 in.,Thread = 7/8 in. - 14 in.
CA$74.99
Ready to Ship
Part#:
TG186025-KIT
Pick-up in store to earn an extra discount
Financing available with Flexiti
Request an install quote at check-out
See our work in our Install Gallery
Free shipping on orders over $99 (some exclusions)
Rod Ends

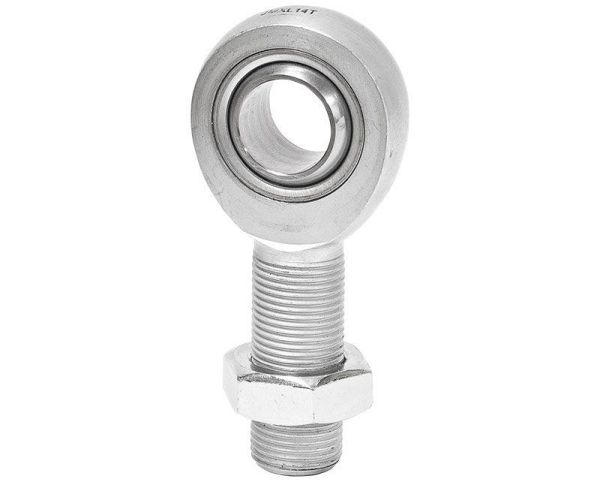

_x000D_Donftt be fooled by lookalike rod ends, they are not all the same. Trail-Gear rod ends are the strongest on the market, tested, and proven. The main body of this rod end is 100% 4340 chromoly and then finished with a zinc coating, The ball is made out of AISI 52100 material and then hard chrome-plated for a tough finish. The liner is made out of a teflon. The best part is that there is no need to pay for jam nuts, because Trail-Gear rod ends come with them.
_x000D_
- _x000D_
- Steel alloy body _x000D_
- Heat treated _x000D_
- Zinc plated _x000D_
- Teflon lined _x000D_
| TG 3/4Kit Part # | _x000D_Industry Standard Part # | _x000D_Bore Size | _x000D_Thread | _x000D_Load Rating | _x000D_
|---|---|---|---|---|
| 186027-KIT | _x000D_JMX12T | _x000D_.750in | _x000D_3/4-16 | _x000D_28,100 lb. | _x000D_
| 186028-KIT | _x000D_JMXL12T | _x000D_.750in | _x000D_3/4-16 LH | _x000D_28,100 lb. | _x000D_
| 186025-KIT | _x000D_JMX14T | _x000D_.875in | _x000D_7/8-14 | _x000D_55,700 lb. | _x000D_
| 186026-KIT OUT OF STOCK | _x000D_JMXL14T | _x000D_.875in | _x000D_7/8-14 LH | _x000D_55,700 lb. | _x000D_
| 186023-KIT | _x000D_JMX16T | _x000D_1in | _x000D_1-14 | _x000D_107,183 lb. | _x000D_
| 186024-KIT | _x000D_JMXL16T | _x000D_1in | _x000D_1-14 LH | _x000D_107,183 lb. | _x000D_
| 186021-KIT | _x000D_JMX16T-1 | _x000D_1in | _x000D_1-1/4-12 | _x000D_107,183 lb. | _x000D_
| 186022-KIT | _x000D_JMXL16T-1 | _x000D_1in | _x000D_1-1/4-12 LH | _x000D_107,183 lb. | _x000D_
