BDS Lift Kit 3in w/FOX Shocks

Specifically intended for 2012-17 models, this system includes an exhaust extension kit that maximizes allowable wheel travel with the factory front driveshaft. This kit comes with 3in Pro-Ride Coil Springs capable of full coil bind and 2in bump stop extensions to control the compression travel, but increase wheel travel. Brake line relocation brackets are supplied to handle the added wheel travel. Many companies donftt include anything to correct your alignment, but BDS includes octo cam washers for the front lower control arms to fine tune the caster angle. Fixed swaybar links are included for Rubicon models with the factory disconnect system, for non-Rubicon models choose between BDS Ultimate Sway Bar Disconnects or JKS Quicker Disconnects. In the rear, sway bar drop brackets are included instead of longer sway bar links to allow the use of a factory wheel and larger tire. To correct the rear axle shift from the lift, a rear frame mounted track bar relocation bracket is included. The kit comes standard with NX2 series custom valved shock absorbers for a smooth ride.

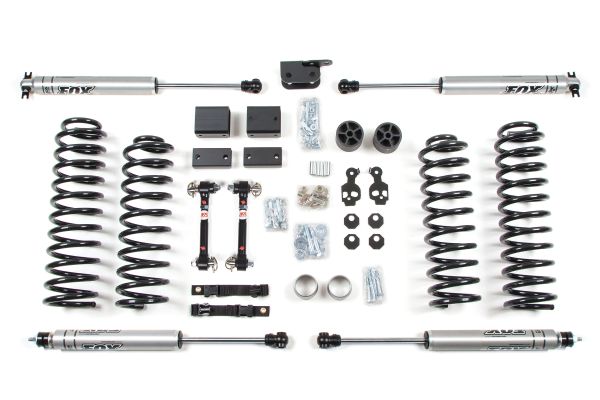

Kit Components

BDS014310: Jk 3 In Box Kit X1

BDS034311: Jk Front Coil Springs X1

BDS034319: Jk Rear Coil Springs X1

BDS124314: 12-18 Jeep JK Exhaust Extension Kit X1

FOX98224921: FOX 2.0 Performacne Shock X2

FOX98224951: FOX 2.0 Performacne Shock
