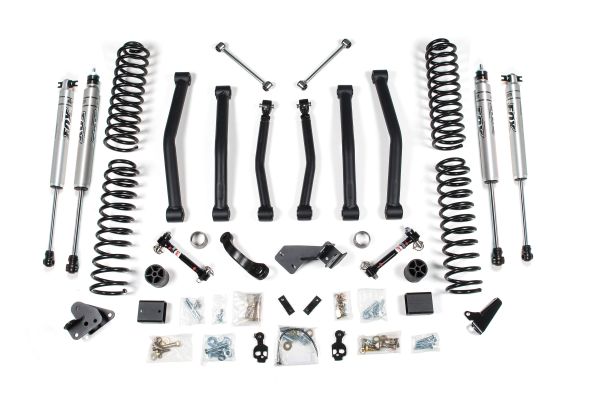

BDS Lift Kit 4.5in w/FOX Shocks

This kit comes with 4in Pro-Ride Coil Springs capable of full coil bind and 3in bump stop extensions to control the compression travel. To handle the added wheel travel, brake line relocation brackets are included or BDS stainless steel lines are available. This system comes complete with front and rear fixed length lower control arms and rear upper adjustable control arms to properly control the front and rear axle positions. BDS control arms come standard with OE grade rubber bushings. If you would like to upgrade, BDS offers adjustable arms with urtethane ends or adjustable arms w/ flex joints to fit your needs. To improve the steering and handling geometry, BDS includes a front track bar relocation bracket and a dropped pitman arm. Fixed swaybar links are included for Rubicon models with the factory disconnect system, for non-Rubicon models choose between BDS Ultimate Sway Bar Disconnects or JKS Quicker Disconnects. Specific for 2012-14, BDS exhaust extensions are included to maintatin front driveshaft clearance at full droop. In the rear, an axle mounted track bar relocation bracket is included that has a built in support gusset that ties into the bump stop pad. JKfts are known for broken welds on the factory track bar mount when wheeled hard, so BDS solved the problem with this added support. The kit comes standard with NX2 series custom valved shock absorbers for a smooth ride.

Kit Components

BDS014454: Jk 4.5 In Box Kit X1

BDS034411: Jk 4.5 In Front Coil Kit X1

BDS034419: Jk 4.5 In Rear Coil Kit X1

BDS124314: 12-18 Jeep JK Exhaust Extension Kit X1

BDS124331: JK Front Fixed LCA Kit X1

BDS124339: JK Rear Fixed LCA Kit X1

FOX98224921: FOX 2.0 Performance Series Shock X2

FOX98224959: FOX 2.0 Performance Series Shock X2
