BDS Lift Kit 4in w/Cast Steel Upper Control Arm (15-19 GMC/Chevrolet Yukon/Tahoe/Yukon XL/Suburban)

These Performance Coilover Systems take ride quality, performance, and offroad capability to the next level with FOX coilover and shocks. At the heart of these systems are the replacement FOX 2.5 factory series remote reservoir coilovers available with the optional DSC (dual speed compression) adjustment. These coilovers join together with the BDS high clearance system to correct suspension, steering, and driveline geometry for unmatched quality and performance. Up front the kits utilize a pair of 1/4in steel high clearance crossmembers, replacement ductile iron steeling knuckles and multipoint differential relocation system to create a solid subframe and retain ESC system compliance. Along with that a 3-piece skid plate system adds protection of vital drivetrain components and the front of this kit is rounded out with CV spacers, heavy duty tie rod ends, longer sway bar links, and brake line brackets. In the rear this 4in lift system a pair of a 3in coil spacers are used to lift and level the stance. The rear track bar is repositioned with a heavy duty bracket and support brace to recenter the rear axle, while longer sway bar links and bump stop extensions are supplied to optimize performance. Rounding out the rear are a pair of FOX 2.0 IFP performance gas shocks to improve rear dampening in horse off-road conditions while offering smooth performance on road. This kit allows for up to 33x12.50 tires to be installed.

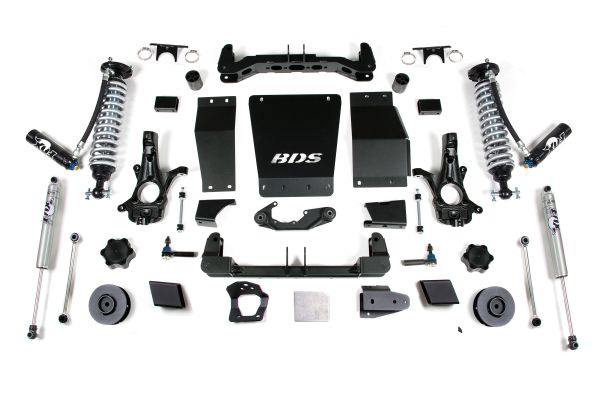

Kit Components

BDS021307: 2015+ GM SUV Rear 3in Box Kit X1

BDS021462: 2014 Chevy 1500 4in Frt Box Kit (1of2) X1

BDS021660: 14-18 GM 1500 - 15-19 GM SUV Knuckle Box X1

BDS021663: 14-18 GM 1500 15-19 GM SUV 6in Frt Box Kit X1

FOX88302135: BDS 07-18 GM 1500 Front Coilover (2) X1

FOX98224719: Fox 2.0 Shock 26.85 x 16.75 x 2- EB1/EB1 X2
