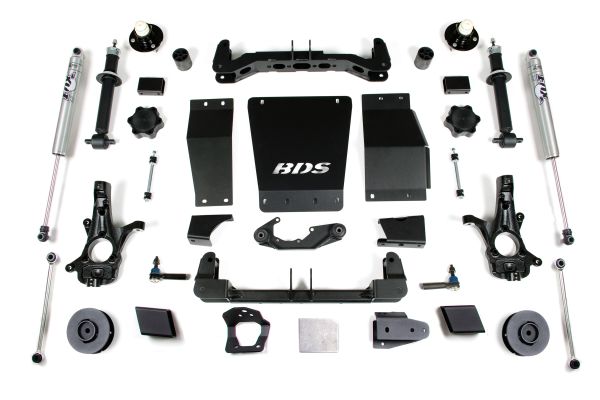

BDS Lift Kit 4in w/Cast Steel Upper Control Arm

This complete 4in IFS system is designed to correct suspension/steering geometry for improved performance, drivability and offroad capability. Utilizing a pair of 1/4in steel high clearance crossmembers and 3-piece skid plate design, this system repositions the lower arms and adds protection of vital drivetrain components. These combined with the CNC machined ductile iron replacement steering knuckles creates a solid subframe to correct suspension and steering geometry for compatibility with the factory installed ESC system. Up front the kits use a multipoint differential relocation kit and CV spacers to securely reposition the front differential to correct CV axle angle and allow for the use of the stock front driveshaft. In place of the factory struts a pair of high pressure gas struts are supplied for improved ride quality and off-road dampening. Also included for the front are heavy duty tie rod ends, longer sway bar links, and brake line brackets. In the rear this 4in lift system a pair of a 2in or 3in coil spacers are available to lift and level the stance. In the rear the kit will come with a track bar relocation bracket and support brace, and longer sway bar links. Also supplied for the rear are bump stop extensions and your choice of BDS- NX2 series gas shocks or FOX 2.0 IFP performance gas shocks. This kit allows for up to 33x12.50 tires to be installed.

Kit Components

BDS021307: 2015+ GM SUV Rear 3in Box Kit X1

BDS021462: 2014 Chevy 1500 4in Frt Box Kit (1of2) X1

BDS021660: 14-18 GM 1500 - 15-19 GM SUV Knuckle Box X1

BDS021663: 14-18 GM 1500 15-19 GM SUV 6in Frt Box Kit X1

BDS85719: NX2 Shock Absorber X2

BDS98144: 2014 Chevy 1500 4in Strut Kit X1
