BDS Lift Kit 4in w/FOX Shocks

This new lift kit is engineered to the highest standard, using quality materials built right here in the USA. The kit offers a smooth ride and reliable on-road handling coupled with impressive off-road performance and clearance for up to 37in tires. The 4in system utilizes a pair of one-piece laser cut 1/4in steel crossmembers, CNC-machined ductile iron steering knuckles, differential relocation brackets, heavy duty differential skid plate, upper strut mount spacers to retain the OE ride quality, bump stop extensions, sway bar relocation, new cam bolts, and billet aluminum driveshaft spacer. In the rear a 4in offset pin block kit recenters the rear axle in the wheelwell and replacing the factory block to eliminate stacking blocks and level the stance of the truck. Rear brake line extensions and your choice of rear BDS-NX2 series or Fox 2.0 shocks round out the kit.

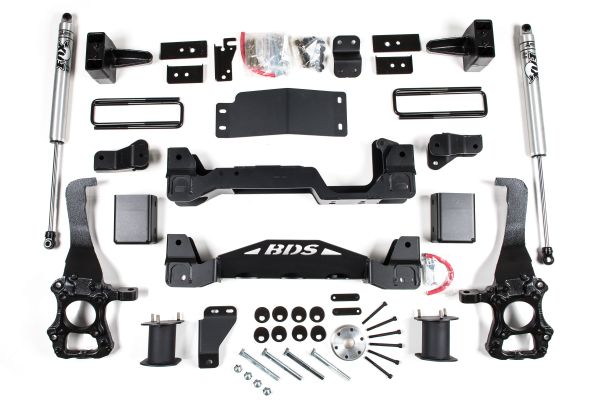

Kit Components

BDS013439: 2017 F150 4in Rear Block Kit X1

BDS023404: 2014-15 F150 4in Spacer Box Kit X1

BDS023634: 15-20 F150 Knuckle Box Kit - DS X1

BDS023635: 15-20 F150 Knuckle Box Kit - PS X1

BDS023650: 17-20 F150 Front Box Kit (1of2) X1

BDS023651: 17-20 F150 Front Box Kit (2of2) X1

FOX98224828: FOX 2.0 Shock Absorber X2
