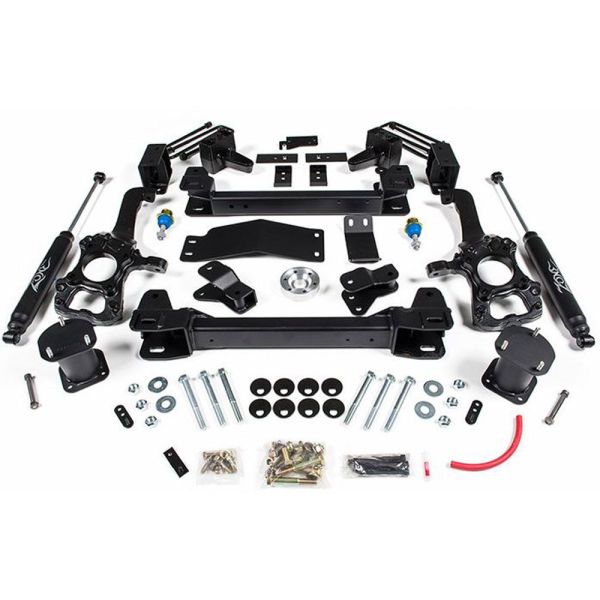

Zone Lift Kit 6in Combo HD Crossmembers

• Front and rear heavy duty 1-piece lower control arm crossmembers
• Massive ductile cast iron steering knuckles
• Full differential relocation bracket system included to properly correct CV shaft angles
• Includes bolt-on strut spacers - strut disassembly not required
• New eccentric cam bolts included for easy alignment
• Includes sway bar relocation brackets to acheive optimum position for sway bar
• 1/4in thick differential skid plate included
• 5in Rear Blocks with integrated bump stop wings to acheive a more level stance
• Rear Hydro shocks included - Nitro shocks upgrade is available.
• Max recommended tire size: 37x12.50 (see tire/wheel fitment below)

Zone Offroad 2015 Ford F150 4wd 6in Suspension System. This new system for the redesigned 2015 aluminum-bodied F150s shares all of the great features of the current Zone 6in system for the 2014 model trucks.

The system is built around 2 heavy duty 1-piece lower control arm crossmembers and massive ductile cast iron steering knuckles. Differential relocation brackets place the front differential for perfect CV angles and still allow for the factory front driveshaft to perform as is should. The 6in of lift is provided by bolt-on strut spacers that do not require disassembly of the factory struts to install. New eccentric cam bolts make adjusting the alignment easy, sway bar drops adjust the sway bar to its optimum position and a heavy 1/4in thick differential skid plate protects the underside when off driving off road.

In the rear, full 5in cast iron lift blocks with integrated bump stop wings provide enough lift to level the truck nicely.  Rear Hydro or optional Nitro shocks finish out the installation and provide enough clearance for a maximum sized tire of 37x12.50.
