BDS Lift Kit 3.5in Coilover Kit

At the heart of these 3.5in coilover systems are a pair of specially tuned FOX 2.0 performance series coilovers. These non-reservoir coilovers are preset for the correct lift height right out of the box and use a threaded body to allow preload adjustment. They are a direct bolt-in replacement for the factory strut assemblies and improve damper performance featuring a 2.0in extruded and machined 6061 T6 aluminum body for better heat dispersion, along with an internal floating piston (IFP) to eliminate oil aeration, FOXfts proprietary internals, 5/8in hard chrome plated heat treated alloy shaft all preloaded with coil springs ready for easy installation.This kit takes perfomrance for the next level by upgrading to FOX 2.0 performance series. Also supplied for the front end are a pair of performance upper control arms (UCAs) designed for improved strength and suspension travel. Built from thick wall 1.5in DOM tubing, these UCAs utilize an indexed ball joint cup to reposition the upper ball joints and allowing more droop travel. These arms come fully assembled right out of the box with high quality greaseable ball joints and rubber bushings for long life, quiet operation and superior corrosion resistance over uniballs and heims. Finishing out the front of these 3.5in systems are fully fabricated differential relocation brackets to correct CV axle operating angles. In the rear of these lift systems the factory leaf springs are retained and 1in lift comes from a heavy duty replacement shackle. These shackles are built from high strength 3/8in steel and have the benefit of leveling the stance, correcting rear pinion angle and allowing for increased rear suspension travel. Also supplied for the rear of these 3.5in lift kits are a pair of FOX 2.0 IFP performance series gas shocks to match the front perfomrance. All kits come finished in a durable black e-coat finish and sent with all hardware packs to complete the install along with step-by-step installation instructions.

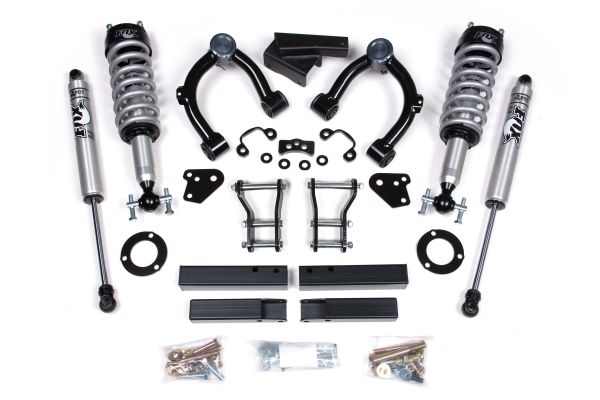

Kit Components

BDS013350: UCA Box Kit X1

BDS123614: Intrusion Beams X1

FOX98224880: FOX 2.0 Shock Absorber X2

FOX98502133: FOX 2.0 Shock Absorber X2
