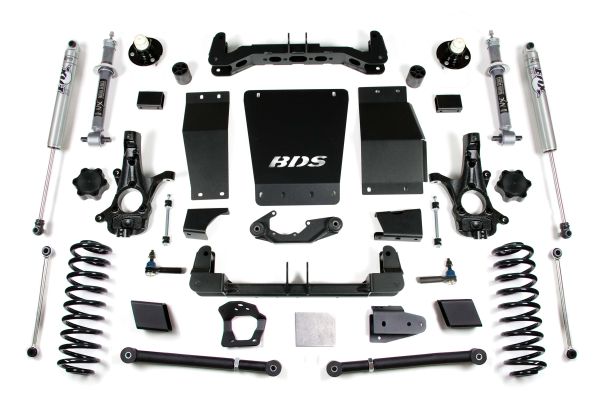

BDS Lift Kit 6in w/Cast Steel Upper Control Arm

This 6in IFS lift kit offers improved performance over any terrain, improved offroad protection, and enhanced on-road comfort. At the core of this 6in lift system is a pair of 1/4in steel high clearance crossmembers and full width modular differential skid plate to reposition the lower arms and add protection of vital drivetrain components. These combined with the CNC machined ductile iron replacement steering knuckles creates a solid subframe and correct suspension and steering geometry to be compatible with the factory installed ESC system. Differential relocation brackets and CV spacers are used to correct the front axle positioning for stock-like CV axle angles and to retain use of the factory front driveshaft. In place of the stock struts, BDS supplies a pair of high pressure gas struts for improved performance and ride quality. Rounding out the front kit are a pair of replacement tie rod ends, longer sway bar links, brake line brackets, and a front laser cut BDS skid plate. In the rear a pair of a 5in ProRide coil springs are supplied to lift and level the stance. These offer improve offroad performance and more travel from the rear suspension. To correct the rear suspension geometry with the taller coils installed a pair of heavy duty adjustable upper control arms are supplied along with a track bar relocation bracket and support brace and longer sway bar links.

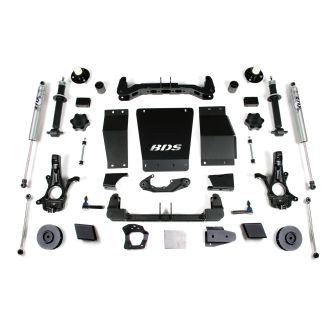

Kit Components

BDS021507: 2015+ GM SUV Rear 5in Box Kit X1

BDS021660: 14-18 GM 1500 - 15-19 GM SUV Knuckle Box X1

BDS021662: 14-18 GM 1500 - 15-19 GM SUV 1500 6in Frt X1

BDS021663: 14-18 GM 1500 15-19 GM SUV 6in Frt Box Kit X1

BDS85759: NX2 Shock Absorber X2

BDS98166: 2014-2018 Chevy 1500 6in NX2 Strut Box Kit X1
