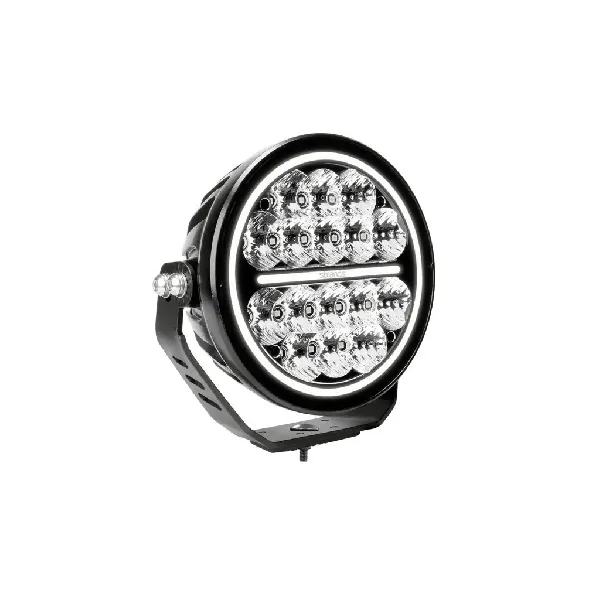

Brightsource Driving Light 7in Round Siberia Night Ranger - Clear Lens

Siberia Series Night Ranger LED Lights

The Siberia Series Night Ranger continues the tradition of innovation with its 7” and 9” round lights, featuring two separate lighting functions beautifully positioned in the housing.

These lights have a clear lens with an E-approved combo driving light pattern, delivering exceptional range and side-of-the-road illumination for improved road/trail safety. The dual-color position light allows you to choose between cool white and rich amber, offering customization options for your vehicle.

Heavy-duty brackets and stainless hardware are included for easy installation. Consider adding a harness adapter (PN 270438) for seamless integration with a BrightSource DT2 wiring harness.

Features:

• E-Approved
• Dual Position Light (Amber & White)
• Optimized Light Beam

Specifications:

• Type of lamp: LED
• Type of LED: Osram
• PCS LED´s: 16
• Voltage (V DC): 9-32V DC
• Theoretical effect (w) 12V: 80
• Theoretical effect (w) 24V: 80
• Consumption (w) 12V: 69.1
• Consumption (w) 24V: 70.1
• Theoretical lumen: 9600
• Actual lumen: 6467
• 1 LUX @ m: 369
• Kelvin: 6000
• IP-class: 67/69K
• Colour housing: Black
• Colour lens: Clear
• Colour LED´s: White and Amber
• Beam pattern: Flood
• Position light: Yes, white and amber
• Connection: DT-4
• Cable length (mm): 500
• Material bracket: Stainless steel
• Material housing/chassi: Aluminium
• Material lens: Polycarbonate
• Depth (mm): 78.2
• Height including bracket (mm): 194.7
• Diameter (mm): 178
• Operating temperature: -20°C – +45°C
• E-approved: YES, according to regulation ECE R112 R7
• Reference number: 20
• EMC: ECE R10
• 3 Year Function Warranty
